¢3.0*¢1.5*220/330, ¢2.8*¢1.1*220, ¢2.8*¢0.9*220 Carbide Gun Drill Blank And Polishing Tungsten Carbide Rods With Hole
The gundrilling process and tooling have been refined for maximum performance and use on modern, dedicated machinery. Firearms continue to be a common application for gundrilling. Other industries include diesel fuel components, medical tooling, plastic injection molds, and more.
Material:
We use 100% virgin tungsten carbide material to reach the requires of good wear resistance and high impact resistance.

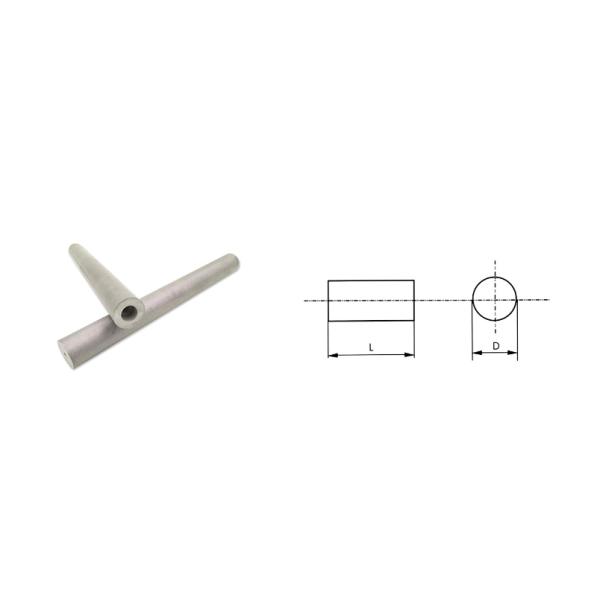

The Specification Range of extruded Grounded Tungsten Carbide Rod :
WC Grain size range: 0.3~0.5μ.m; 0.5~0.9μ.m; 1.0~1.3μ.m; 1.4~2.0μ.m.
Length range:3mm-600mm; (General Length: 100mm,300mm,320mm,330mm)
Diameter Grade: h4(H4), h5(H5), h6(H6), h7(H7), h8(H8), h9(H9), etc.
Good grinding machine to ensure the sphencity & the Linearity of rod at higher level standard;
Sphericity tolerance range: 0.001mm ~ 0.005mm;
Linearity tolerance range: 0.001mm~0.1mm;
Surface Roughness can be reached to: RA0.04.(reach a mirror effect surface after fine grinding)
Application of Cemented Carbide Rods Blank
1. For making carbide mold punches
2. For making carbide core pins
3. For making carbide dental burrs
4. For making carbide PCB drills, drills, end mills & hole drilling tools, boring bar
5. For making carbide reamers
Carbide round bars have superior hardness, flexural strength, concentricity and straightness.
The round bar is press molded by molding and extrusion.
The cemented carbide round bar is sintered by a vacuum integrated furnace or a high-pressure sintering furnace, and has high overall performance and no porosity.
The carbide rods are used for cutting aluminum alloy, cast iron, stainless steel, Refractory alloy steel, nickel-based alloy, titanium alloy and nonferrous materials, For making PCB drills, drills, end mills &reamers, mold punches ,core pins & hole drilling tools, etc.
The Features and the uses of blank cemented carbide
Our decicated engineers and skilled staff enable us to provide the best Cabide Gun Drill Blanks for the market domestic and abroad:

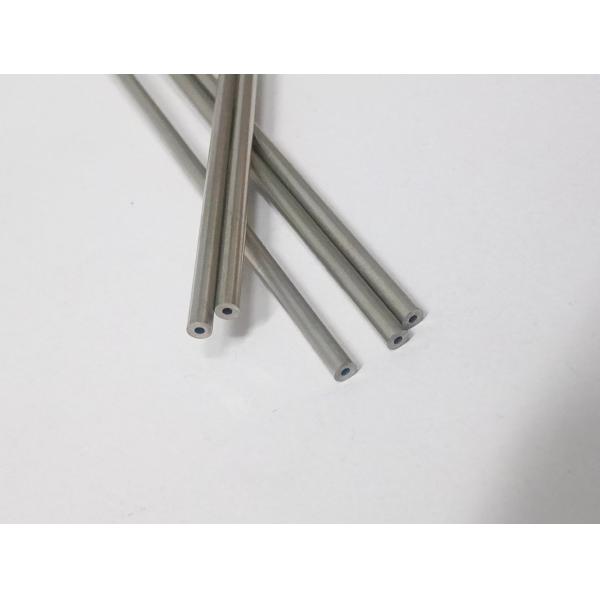

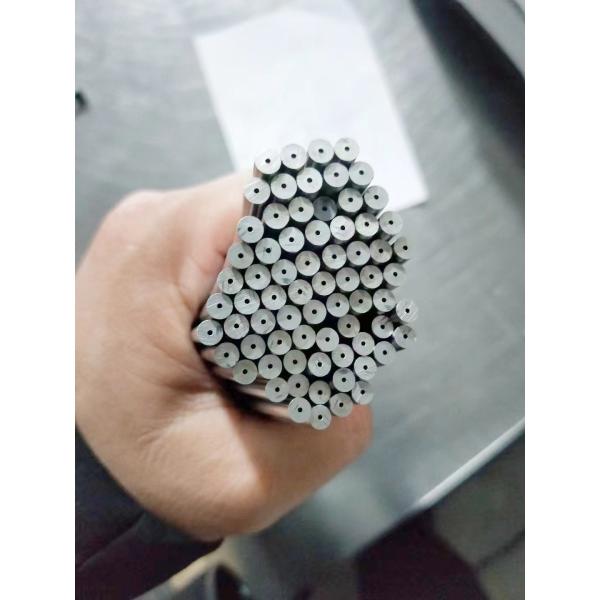

Single hole Carbide Gun Drill Blanks
Double Hole Carbide Gun Drill Blanks
kidney holes Carbide Gun Drill Blanks
Regular Finishing
Blank
Polishing or tolerance of h6 H6 h5 etc.
Main Types:
Various dimension & types can be supplied at customer’s requests.
| Unground | h6 | L | TOL. |
| D | Tol. |
| φ2.2 | +0.3+0 | 2 | 330 | +5/+0 |
| φ3.2 | 3 | 330 |
| φ4.2 | 4 | 330 |
| φ5.2 | 5 | 330 |
| φ6.2 | 6 | 330 |
| φ7.2 | 7 | 330 |
| φ8.2 | 8 | 330 |
| φ9.2 | 9 | 330 |
| φ10.2 | 10 | 330 |
| φ11.2 | +0.4/+0 | 11 | 330 |
| φ12.2 | 12 | 330 |
| φ13.2 | 13 | 330 |
| φ14.2 | 14 | 330 |
| φ15.2 | 15 | 330 |
| φ16.2 | 16 | 330 |
| φ17.2 | 17 | 330 |
| φ18.2 | 18 | 330 |
| φ19.2 | 19 | 330 |
| φ20.2 | +0.5/+0 | 20 | 330 |
| φ21.2 | 21 | 330 |
| φ22.2 | 22 | 330 |
| φ23.2 | 23 | 330 |
| φ24.2 | +0.6/+0 | 24 | 330 |
| φ25.2 | 25 | 330 |
| φ26.2 | 26 | 330 |
| φ27.2 | 27 | 330 |
| φ28.2 | 28 | 330 |
| φ29.2 | 29 | 330 |
| φ30.2 | 30 | 330 |

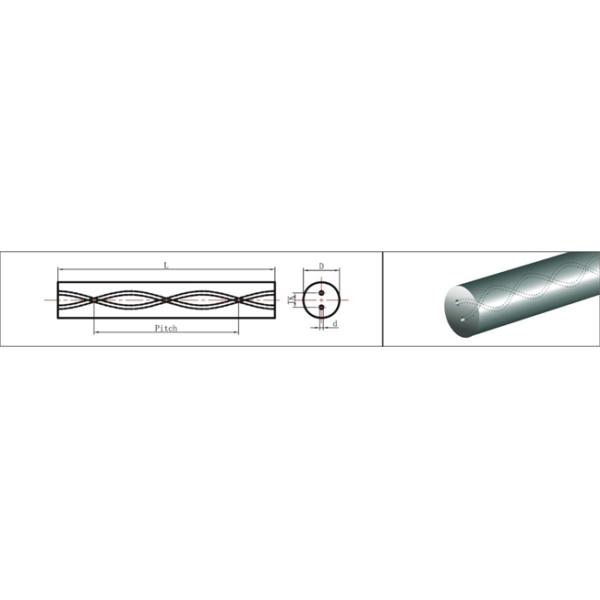

Type Specifications: ØD x ød x L
| Unground | Ground h6 | d(mm) | L +5.0mm | a |
| D mm | Tol. |
| 4.3 | 0/+0.3 | 4 | 0.6-2.0 | 330 | 0.15 |
| 5.3 | 5 |
| 6.3 | 6 |
| 7.3 | 7 | 0.8-3.0 |
| 8.3 | 8 |
| 9.3 | 9 | 0.2 |
| 10.3 | 10 | 0.8-4.0 |
| 11.3 | 0/+0.4 | 11 |
| 12.3 | 12 |
| 13.3 | 13 | 0.8-6.0 | 0.3 |
| 14.3 | 14 |
| 15.3 | 15 |
| 16.3 | 16 |
| 17.3 | 0/+0.5 | 17 | 0.8-7.0 | 0.4 |
| 18.3 | 18 |
| 19.3 | 19 |
| 20.3 | 20 | 0.5 |
| 22.3 | 22 |
| 24.3 | 24 |
| 25.3 | 25 |
